Point Follow Project

You can easily simulate a robot to follow points with RoboDK. Points in RoboDK can be extracted from objects, curves orimportedas a list of points in CSV files. This option is useful for spot welding or drilling applications for example. The following video shows an example to set up a spot welding application:watch video.

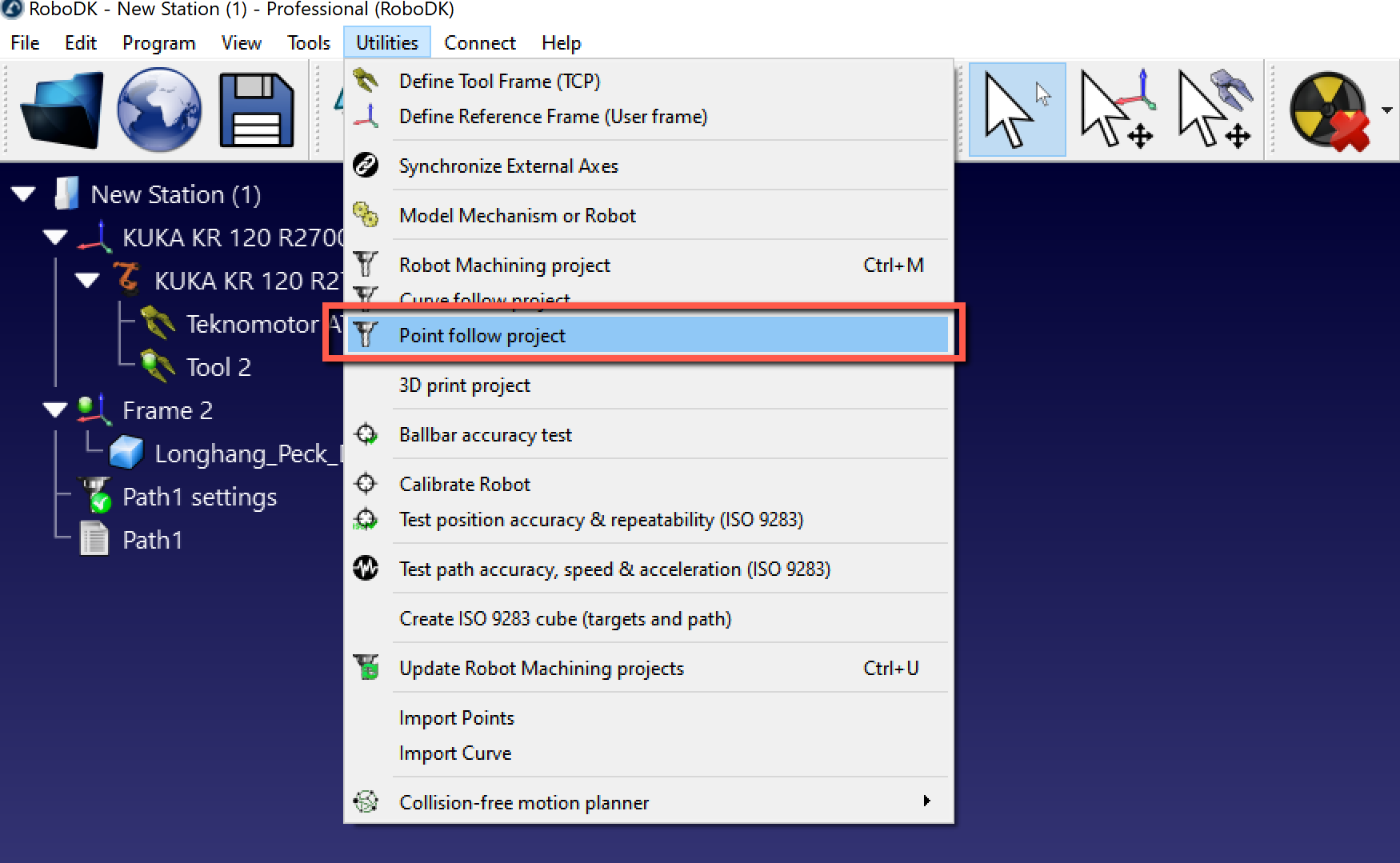

SelectUtilitiesPoint Follow Projectto open the point follow settings. These settings are the same as aRobot Machining Project, the only difference is that thePath inputis preset toSelect points.

Robot Machining - Image 28

SelectSelect pointsto select the point(s) on the screen.

Robot Machining - Image 29

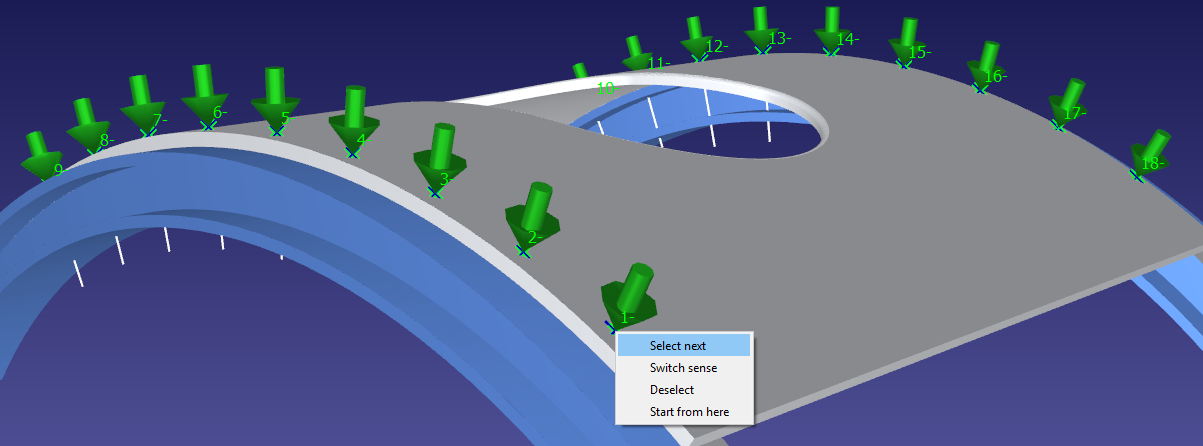

用鼠标左键点击选择点。Selecting the same point twice will switch the approach direction. Also, right clicking a point allows selecting the points that follow by selectingSelect next.

Robot Machining - Image 30

Right click the screen and selectDoneor press the Esc key to go back to the settings menu. The green path will display the robot motion with respect to the object.

Some additional options are available at the top right of the settings, such as the tool speed and the approach distance. The default settings are shown in the next image:

Robot Machining - Image 31

Robot Machining - Image 32

Import Points

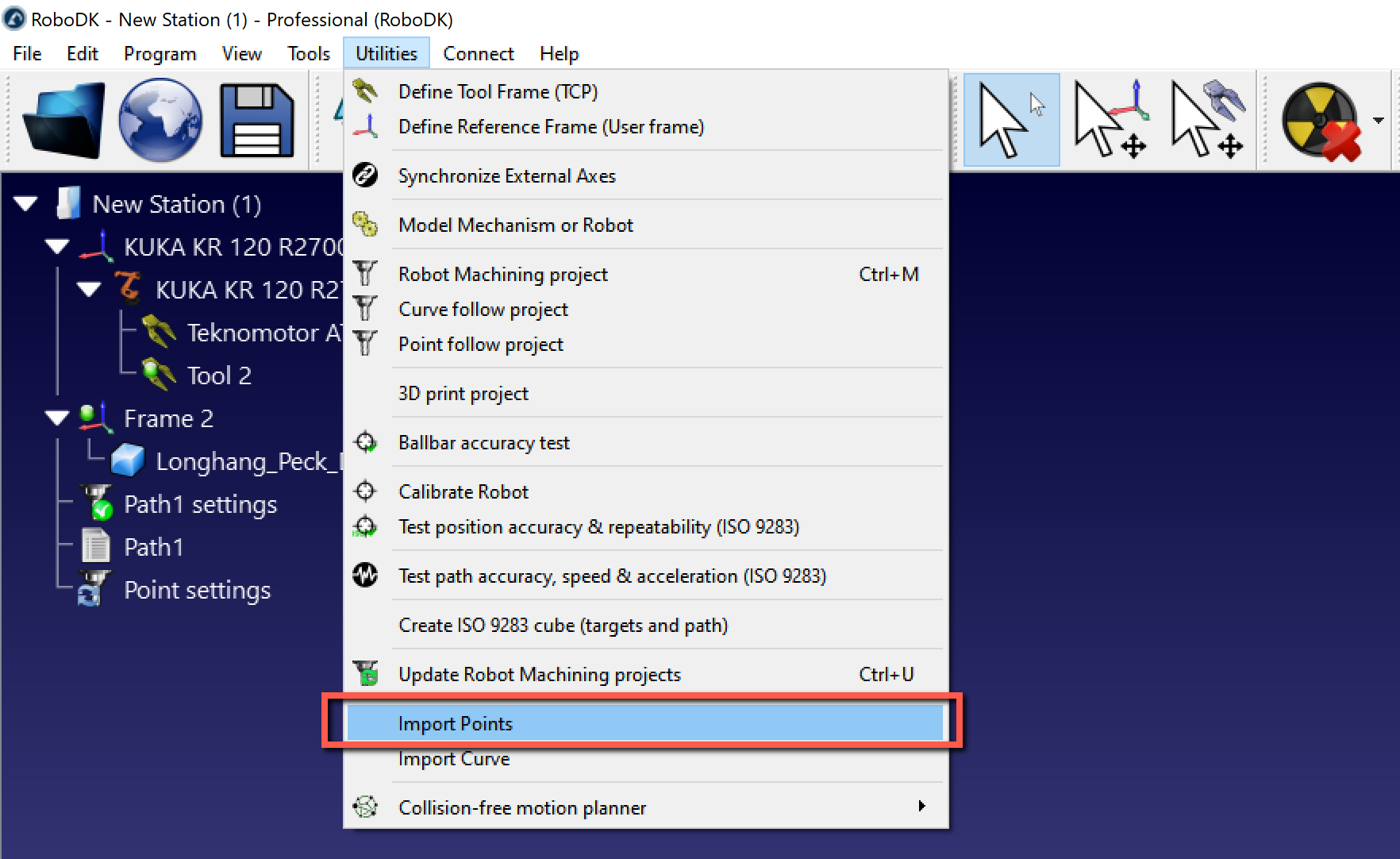

A list of points can be imported from a text file or a CSV file by selectingUtilitiesImport Points. A new item will appear in the station showing the points as an object.

Robot Machining - Image 33

Robot Machining - Image 34

The file can be a text file with the 3D coordinates of each point of the curve. Optionally, the orientation of the Z axis of the tool can be provided as an i,j,k vector.

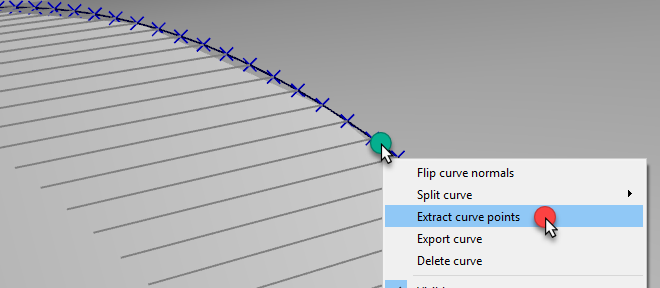

Optionally, existing curves of an object can be converted into points by right clicking a curve, then, selectingExtract curve points.

Robot Machining - Image 35
