This section shows useful tips and tricks to use RoboDK software more productively.
Having a suitable size for reference frames helps grabbing the right coordinate systems, targets, tools or robots and move them to the desired location.
Press theminus key (-)orthe plus key (+)once or multiple times to make the reference frames smaller or larger, respectively.
Select any item in the tree such as an object, a reference frame or a robot and pressF2to rename it.

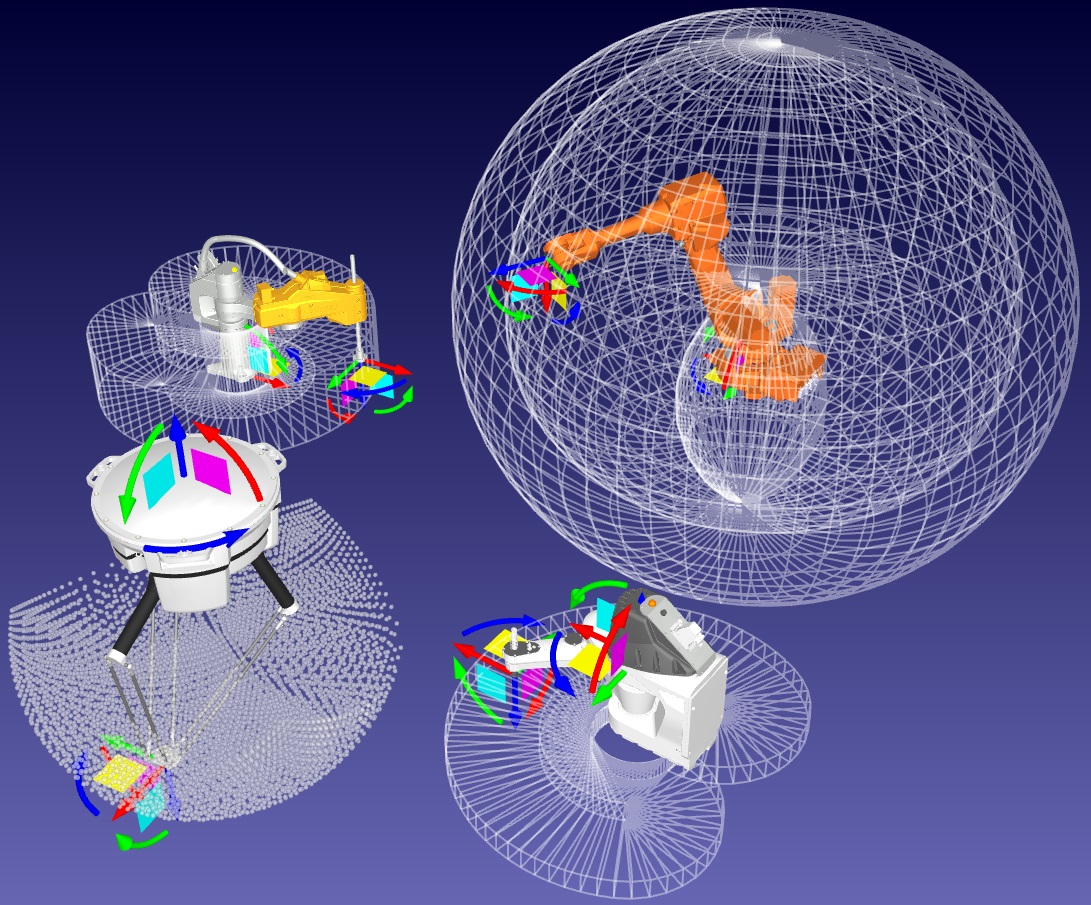

您可以快速显示机器人工作空间的电动车aluate the reachability of a robot. Displaying the workspace helps you make sure that the location of your part is reasonable given the size of your robot. Double click a robot and select to display the workspace for the current tool. Otherwise, the workspace of the robot wrist will be displayed by default.
Press the asterisk key (*) to show or hide robot workspaces.
You can load the last file you opened or saved by pressing Ctrl+1. You can also access recently opened or saved files in theFilemenu.
You can display the station tree as a side window. SelectTools-Optionsand set theDisplay tree preferenceas aSide Window．This layout may be preferable if you work with large objects or complex stations.
Select one or more objects and press F7 to make them invisible. Press F7 again and they will switch to visible.
You can show or hide the text on the screen by selecting the / key (forward slash).
Move any reference frame, robot, target or object by holding theAltkey. You can place one or multiple objects under a reference frame to represent the position of the object or reference frame with respect to the robot.
You can move a robot tool (TCP) by holding theAlt + Shiftkeys. Robot programs will be updated automatically.
You can reorder items in the tree with one drag and drop operation inside the station tree. You can do so by dragging objects with the mouse right button.
You can reorder items in the tree without changing their absolute position. You can do so by holding theShiftkey while youdrag and dropitems within the tree.
This operation modifies the relative position to maintain the same absolute position.
You can also right click a target and use theChange supportoption.
Hold theCtrl键移动时mouse wheelto change the size of the tree. You can also specify the size of the text, icons and toolbar in theTools➔Optionsmenu.
You can move the robot to a specific location and pressCtrl+Tto create a new target. The current robot position will be recorded in the joint space and the Cartesian space.
Right click the newly created target to specify if you want to prioritize the robot joint axes or the Cartesian coordinates.
You can select a target or a movement instruction and pressF3to modify the robot target. You can select to teach a new position or manually enter new coordinates.
You can selectProgram-Teach Targets on Surfaceto create new targets as you select points on a surface. The targets will be normal to the surface by default. You can also modify the tool orientation by using the settings on the left panel.
Hold theAlt+Shiftkeys to move a target while keeping it on the object surface. You can also hold theAltkey only if you prefer to freely move the target without constraining it on the object surface.
You can select a target and pressF4to change the robot configuration. Industrial robots can reach the same position with different robot configurations. Having the right starting configuration is important as it helps making sure the program does not hit a robot singularity, axis limit or a collision.
Select a program and pressF5to check if there are any issues with the program path. RoboDK will validate the program and display issues such as robot singularities or axis limits.
You can also selectShift+F5to include a check for collisions. Make sure to set the right collision map in Tools-Collision Map (Shift+X) and specify the object correlations that you want to include during collision checking.
You can accelerate a robot simulation by holding the space bar. You can also select theplaybutton in the toolbar. RoboDK simulates robot programs at a ratio of 5 times the real speed by default. This ratio is accelerated to 100 with the space bar.

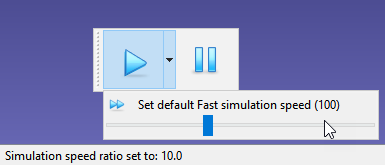

You can also select the dropdown arrow to change the default normal/fast speeds.
Select one or more programs in the tree and pressF6to generate the robot programs. RoboDK will automatically generate all available robot programs in the station if you don’t select any program.
Once you have a program simulation ready, right click the program and selectExport Simulation…to generate a 3D HTML or a 3D PDF simulation.
Examples:
·URpainting robot
You can connect your robot to a computer to send programs directly from RoboDK to the robot. SelectConnect➔Connect Robotand enter the Robot IP. Then, right click your program and selectSend Program to robot．The program will be generated and automatically transferred to the robot.
This option uses FTP transfer or other dedicated protocols depending on the robot controller. These protocols can be FTP, socket communication or a serial connection.
You can connect robots to a computer to move the robots directly from RoboDK. SelectConnect➔Connect Robotand enter the Robot IP. Then, selectConnect请到门blish communication using the robot driver.
You can right click any robot program and activate theRun on robotoption. Then, double click a program to move the real robot together with the simulation.
This option uses a dedicated driver connection. This allows you to program robots online and proper debugging.
You can activate the trace of the robot by pressingAlt+T．您还可以更改跟踪我风格n the Tools➔Trace menu.
