This case study shows an ingenious use of robot milling to produce ice hockey sticks. We never knew that they were so challenging to make!
Do you know how ice hockey sticks are made? Like many manufacturing processes, there’s a fascinating journey to convert raw materials into a fully functional stick.
It’s a process which can be improved by robotic milling and offline programming.
Recently, Sunrob Robotics in Finland got in touch with us to demonstrate their ingenious robot milling application using RoboDK.
In this case study, we introduce Sunrob Robotics and their impressive robot milling application.
Meet Sunrob Robotics
Sunrob Robotics是芬兰提供交钥匙机器人解决方案using KUKA robots. They have 20 years experience integrating KUKA robots in many industry sectors with various materials, including food, metal, plastics, and wood.
In their latest application, the team used RoboDK to create a bespoke ice hockey stick milling station for a client.
The Manufacturing Challenge of Ice Hockey Sticks
Ice hockey is the most popular sport in Finland — it is also the most popular in RoboDK’s home country of Canada —the only two countries in the world who love the sport so much!
Ice hockey sticks need to be both strong and flexible, as theyhave to withstand forcesof over 110 lb (490N) often during the game. They are manufactured usinga variety of materials,including wood, graphite, and fiberglass. But, the most common type in professional games is composite sticks, which are often made with a solid plastic core wrapped in fiberglass or graphite (carbon fiber) sheets.
The basic steps (highly simplified) for creating a composite stick are:
- Cut out the solid core of the stick (e.g. in ABS plastic) to the desired shape and size.
- Wrap the core with fiberglass or graphite sheets, with fibers crossing to improve strength.
- Bake the stick in a mold to fuse the sheets together.
Hockey sticks vary hugely in size and shape — the ones in this specific application were for goalies. At the top level of the game, players have their sticks custom made to their specifications. Players also frequently break their sticks performing “slap shots” (where they push the stick into the ice to bend it then release the elastic energy to catapult the puck at up to 100 miles per hour). Theaverage playergoes through 70-120 sticks per season.
All these factors lead to significant challenges for the manufacturers of ice hockey sticks. They need to produce many, high performance, customized sticks every season whilst also making their mass production models for the general public.
What a perfect application for robot milling!

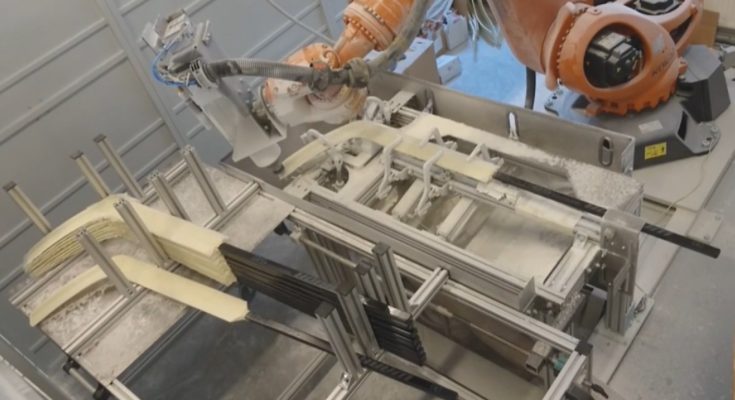

How Sunrob Robotics Makes Ice Hockey Sticks with RoboDK
Robot milling is an ideal solution when you need to cut custom shapes from large workpieces. It has no limitations on size, which means that milling robotscan outperform traditional CNC machines.
However, robot milling can be tricky if you don’t pick the right software. Offline programming solutions can be costly and often require that you pay for extra add-ons for milling applications.
The team at Sunrob Robotics recognized that they needed a cost-effective solution which was highly flexible, allowing them to easily load new hockey stick designs into the robot program with minimum effort. They chose RoboDK, which comes with a milling wizard as standard.
Here is a video of their application:
Cool, right!?
3 Things We Love About Sunrob’s Application
There a few things about this application which really impressed us here at RoboDK. The team have integrated a seamless manufacturing process which perfectly meets the task requirements.
Here are 3 things that really stood out to us:
- The ingenious integration of robot and tool clamps— The first feature that really impressed us was the way that the team integrated the robot milling path with the clamps in the machine. This addresses a problem which manufacturers often have — how can you hold the workpiece steady without the clamps getting in the way of the tool.
- Using a tool changer to quickly switch between operations— One of the huge benefits of robots is that you can use so many tools with them (see our list of the 10 most popular robot tools). The team achieved this by using a tool changer with a gripper and laser scanner at one end and the milling spindle at the other end.
- Integration of multiple manufacturing steps into one seamless sequence— The great thing about this application is that it is able to achieve a complex manufacturing sequence in less than a minute using only one robot. The team made great use of RoboDK’s ability to switch between tools easily, as well as its integrated robot machining wizard.
The 5 Steps to Make an Ice Hockey Stick with RoboDK
Let’s have a look at how the team at Sunrob Robotics achieved this impressive application.
Each design of hockey stick followed the following 5 steps:
1. Laser scan existing ice hockey stick
As we have explained, each goalie has their own personal design for their stick.
Sunrob Robotics uses a handheld laser scanner to make a 3D model of each stick, which they then replicated exactly with robot milling.
2. Create a milling program with RoboDK
The team then turned this model into a machining path with their favorite CAM software. RoboDK is software-agnostic in this regard so you can use whichever CAM package you most prefer. For more details about this,see this article.
Once the machining path was generated, they then created the robot program automatically using RoboDK’s machining wizard.
3. Load preform sticks into the production cell
Now, the operation begins.

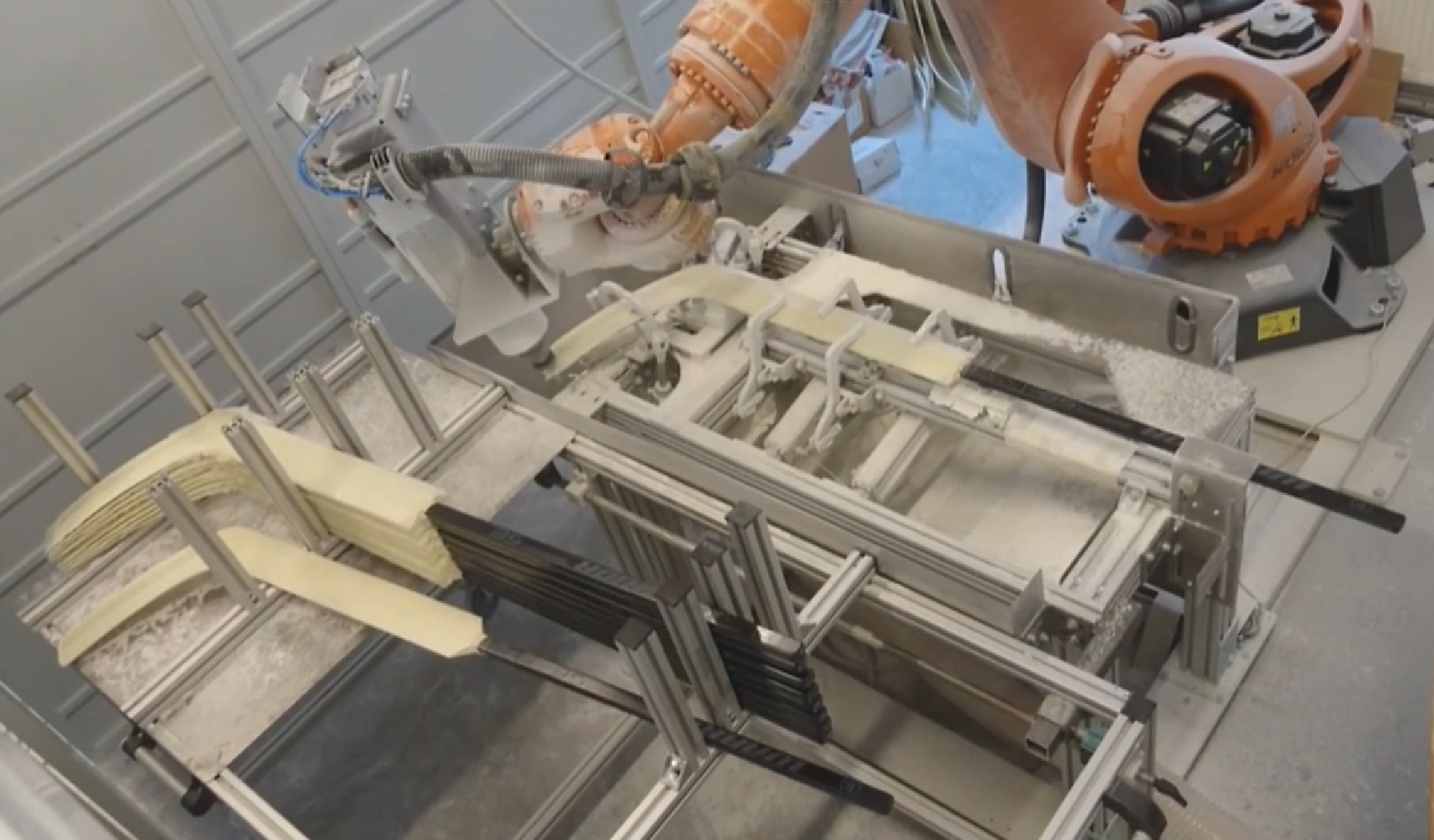

As you saw in the video, the robot starts by picking a new preform from the pile and placing it into the clamps.
4. Laser measure the preform
To ensure that the milling is accurate, the preform is then scanned with a laser scanner. This information is used to align the milling operation with the preform.
5. Mill exact copy of the stick
Using robot milling, the preform is then cut into the precise shape of the ice hockey stick. This also is where the team’s ingenious use of robotic clamps came into play, as the clamps move out of the way when the milling tool passes them.
This application by Sunrob Robotics is a perfect example of how to achieve robot milling with RoboDK. Good job guys!
How could you use robot milling in your business?Tell us in the comments below or join the discussion onLinkedIn,Twitter,Facebook,Instagramor inRoboDK论坛.
